Using XML Transviewer Beans, 8 of 15

Using XMLSourceView Bean (oracle.xml.srcviewer API)

XML Sourceview Bean is a visual Java bean that shows an XML document. It improves the viewing of XML and XSL files by color-highlighting the XML/XSL syntax. It enables an Edit mode.

XMLSourceView Bean easily integrates with DOM Builder Bean. It allows for pre or post parsing visualization and validation against a specified DTD.

XMLSourceView Bean recognizes the following XML token types:

Tag
Attribute Name
Attribute Value
Comment
CDATA
PCDATA
PI Data
PI Name
NOTATION Symbol

Each token type has a foreground color and font. The default color/font settings can be changed by the user. This takes as input an org.w3c.dom.Document object.

XMLSourceView Bean Usage

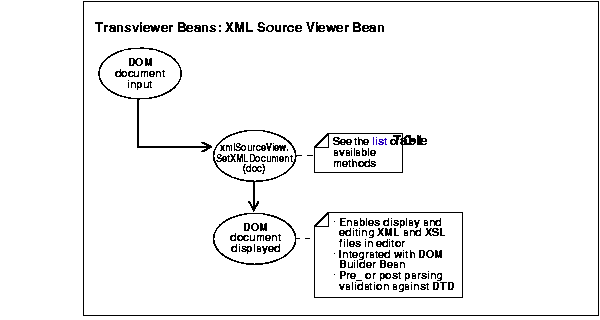

Figure 20-4 shows the XMLSourceView Bean usage. This is part of the oracle.xml.srcviewer API.

A DOM document inputs XMLSourceView.SetXMLDocument(Doc). The resulting DOM document is displayed. See "Transviewer Bean Example 2: ViewSample.java".

Table 20-3 lists XMLSourceView methods.

Figure 20-4 XMLSourceView Bean Usage

Table 20-3 XMLSourceView Bean Methods

Method	Description
fontGet(AttributeSet)	Extracts and returns the font from a given attributeset.
fontSet(MutableAttributeSet, Font)	Sets the mutableattributeset font.
getAttributeNameFont()	Returns the Attribute Value font.
getAttributeNameForeground()	Returns the Attribute Name foreground color.
getAttributeValueFont()	Returns the Attribute Value font.
getAttributeValueForeground()	Returns the Attribute Value foreground color.
getBackground()	Returns the background color.
getCDATAFont()	Returns the CDATA font.
getCDATAForeground()	Returns the CDATA foreground color.
getCommentDataFont()	Returns the Comment Data font.
getCommentDataForeground()	Returns the Comment Data foreground color.
getEditedText()	Returns the edited text.
getJTextPane()	Returns the viewer JTextPane component.
getMinimumSize()	Returns the XMLSourceView minimal size.
getNodeAtOffset(int)	Returns the XML node at a given offset.
getPCDATAFont()	Returns the PCDATA font.
getPCDATAForeground()	Returns the PCDATA foreground color.
getPIDataFont()	Returns the PI Data font.
getPIDataForeground()	Returns the PI Data foreground color.
getPINameFont()	Returns the PI Name font.
getPINameForeground()	Returns the PI Data foreground color.
getSymbolFont()	Returns the NOTATION Symbol font.
getSymbolForeground()	Returns the NOTATION Symbol foreground color.
getTagFont()	Returns the Tag font.
getTagForeground()	Returns the Tag foreground color.
getText()	Returns the XML document as a String.
isEditable()	Returns boolean to indicate whether this object is editable.
selectNodeAt(int)	Moves the cursor to XML Node at offset i.
setAttributeNameFont(Font)	Sets the Attribute Name font.
setAttributeNameForeground(Color)	Sets the Attribute Name foreground color.
setAttributeValueFont(Font)	Sets the Attribute Value font.
setAttributeValueForeground(Color)	Sets the Attribute Value foreground color.
setBackground(Color)	Sets the background color.
setCDATAFont(Font)	Sets the CDATA font.
setCDATAForeground(Color)	Sets the CDATA foreground color.
setCommentDataFont(Font)	Sets the Comment font.
setCommentDataForeground(Color)	Sets the Comment foreground color.
setEditable(boolean)	Sets the specified boolean to indicate whether this object should be editable.
setPCDATAFont(Font)	Sets the PCDATA font.
setPCDATAForeground(Color)	Sets the PCDATA foreground color.
setPIDataFont(Font)	Sets the PI Data font.
setPIDataForeground(Color)	Sets the PI Data foreground color.
setPINameFont(Font)	Sets the PI Name font.
setPINameForeground(Color)	Sets the PI Name foreground color.
setSelectedNode(Node)	Sets the cursor position at the selected XML node.
setSymbolFont(Font)	Sets the NOTATION Symbol font.
setSymbolForeground(Color)	Sets the NOTATION Symbol foreground color.
setTagFont(Font)	Sets the Tag font.
setTagForeground(Color)	Sets the Tag foreground color.
setXMLDocument(Document)	Associates the XMLviewer with a XML document.
